MONOBLOCK GALTECH 60L 6 SECTIONS 12 V

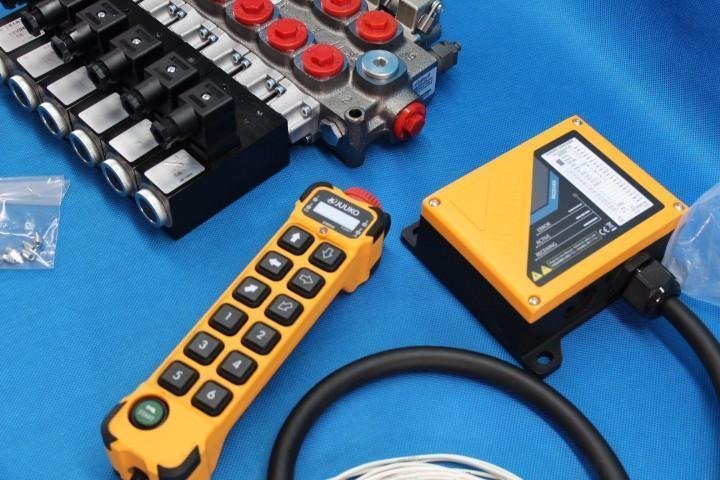

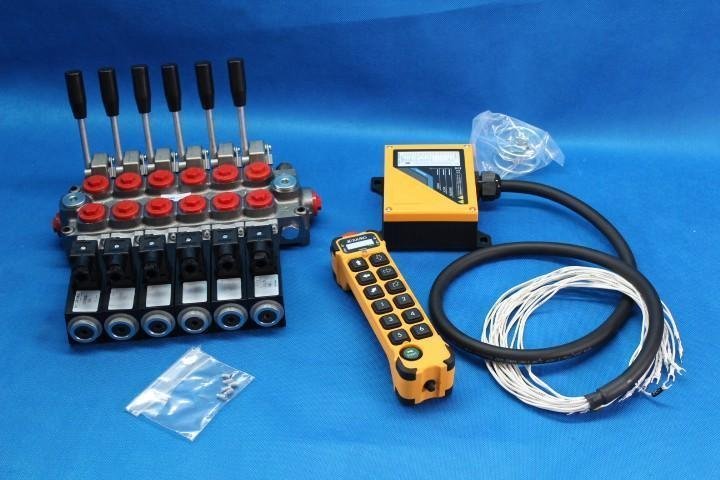

+JUUKO HSK 1200 Industrial Remote Crane Control Radio System kit include all cables

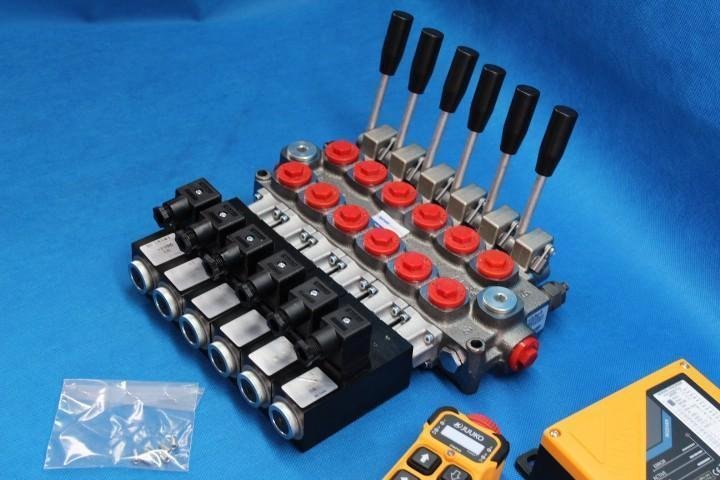

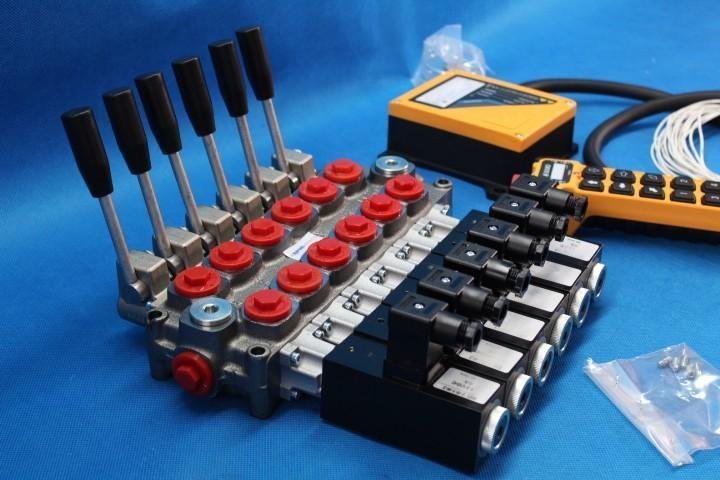

MONOBLOCK GALTECH 60 L/MIN 6 SECTION (ELECTRICALLY CONTROLLED BY WIRELESS PANEL + MANUALLY BY LEVERS)

Valve type GALTECH flow 60l/min

Magnet connection Type DIN 43650 (vers. A)
Coil insulation class H Supply voltage 12
Maximum voltage tolerance ±10%
Protection type IP65
Absorbed power supply 58W
Maximum utilization ratio 100%
Directional control valve characteristics (60 l/min)
Max. working pressure 275 bar (3988 PSI)
Max. back outlet pressure 25 bar (3363 PSI)
Emergency operation or in case of power failure With lever
Max. spool leakage of A and B ports to T port at 1450 PSI with viscosity 35 mm2/s 5 cm3/min Made in Italy

JUUKO HSK 1200 Industrial Remote Crane Control Radio System
Frequency band 433MHz~434MHz
Modulation method GFSK
Typical operating range 100 m
Control system PLL
Antenna impedance 50Ω
Typical response time for Stop command and commands 50ms ~ 100 ms
Average power consumption 8mA@DC3VPower supply LR6(AA)1.5V x2
Operating and storage temperature (-20°C)~(+55°C)/(-40°C)~(+65°C)
Radio-frequency power <10dbm
Protection degree IP65
Dimensions 193x57x51 mm
Weight 226g
Housing material PA (30% GF)
K1200 12 PUSH BUTTON SINGLE SPEED

Independent LED’s,indicate the status of the battery.
Switching power system.
Activation of the transmitter is protected by an electronic key-code and an auto shut-off option which is programmable.
The system automatically change to a another frequency in the presence of radio interference.
Eco power management system. Save on batteries.
It can receive and display via LED 1 and LED 2, signals coming from the machine control system (relay action feedback).
Mushrooms type EMO button.
Wireless pairing procedure using the keyboard pushbuttons.

---------------
