Product Description

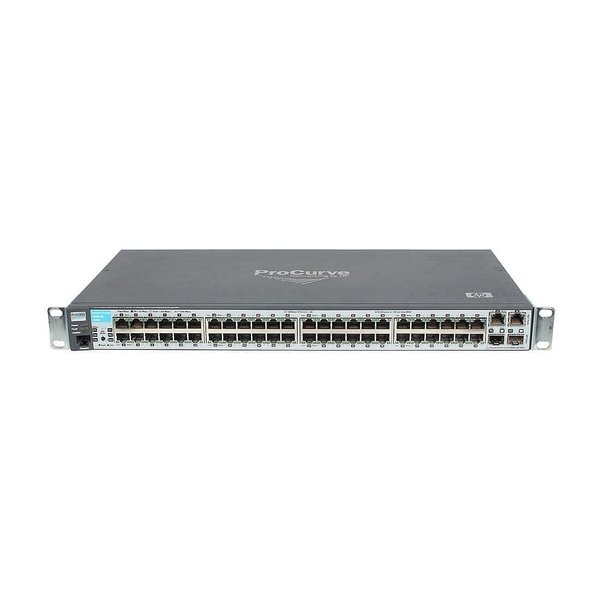

HP ProCurve Switch 2610-48

Your business requires absolutely dependable connectivity that is fast, secure, and always-on. HP ProCurve switches and hubs deliver it. HP ProCurve switches and hubs build reliable networks that are always-on, always working. HP helps you construct dependable networks with quality products and value-added services to grow those networks. A solid infrastructure built with HP ProCurve switches and hubs will help you determine what connectivity will mean to the future of your business. All ProCurve Switch 2610 switches include two 10/100/1000Base-T ports and two mini-GBIC slots for Gigabit uplink connectivity. An optional redundant external power supply is also available to provide redundancy in the event of a power supply failure. With static routing, robust security and management features, free lifetime warranty, and free software updates, the 2610 series is a cost-effective solution for customers who are building converged enterprise edge networks.

Technical features
Ports
48 auto-sensing 10/100 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX); Media Type: Auto-MDIX; Duplex: half or full; 1 RJ-45 serial console port; 2 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE; 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T); Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only; 2 open mini-GBIC (SFP) slots

Rack mounting
Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only

Memory and processor
MIPS @ 300 MHz, 16 MB flash, 128 MB SDRAM; packet buffer size: 2 MB

Latency
100 Mb < 6.2 μs (LIFO); 1000 Mb < 4.4 μs (LIFO)

Address table size
8000 entries

Routing/switching capacity
17.6 Gbps

Throughput
up to 13.0 million pps

Management features
HP ProCurve Manager Plus; HP ProCurve Manager (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)

Communications
HTML and telnet management; IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1v VLAN classification by Protocol and Port; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3x Flow Control; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 951 BOOTP; RFC 1542 BOOTP Extensions; RFC 2030 Simple Network Time Protocol (SNTP) v4; RFC 2131 DHCP; RFC 3046 DHCP Relay Agent Information Option; RFC 3376 IGMPv3; RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 1573 SNMP MIB II; RFC 2021 RMONv2 MIB; RFC 2096 IP Forwarding Table MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2665 Ethernet-Like-MIB; RFC 2668 802.3 MAU MIB; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 2737 Entity MIB (Version 2); RFC 2863 The Interfaces Group MIB; IEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 3164 BSD syslog Protocol; RFC 3176 sFlow; ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED); SNMPv1/v2c/v3; IEEE 802.1X Port Based Network Access Control; RFC 1492 TACACS+; Secure Sockets Layer (SSL); SSHv1/SSHv2 Secure Shell

Power requirements
Voltage: 100 -127 VAC / 200 -240 VAC; Frequency: 50 /60 HzÂ

Power availability
1.3 A / 0.8 A

Power consumption
66 W

Operating conditions
Safety
CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950

Electromagnetic compatibility
FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class AÂ

Storage temperature range
-40ºC to 70ºC

Operating humidity range
15% to 95% @ 40ºC, non-condensing

Dimensions / weight / warranty
Product dimensions (W x D x H)
44.2 x 23.62 x 4.39 cm

Product weight
4.88 kg
