Product Description

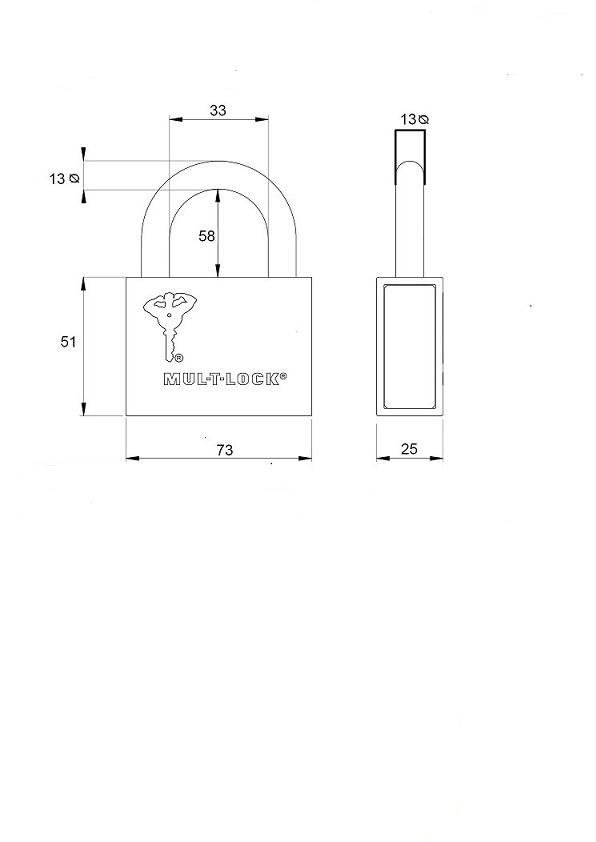

A = 51mm High
B = 73mm Wide
C = 25mm Deep
D = 12.7mm Shackle Diameter
E = 37mm Vertical Clearance (C1 model)
F = 33mm Horizontal Clearance
CEN Grade 4

Application
Professional High Security padlock for general use.

Operation
Rotate key 55Ëš- 65Ëš to unlock.

Options
Removable shackle with non-retaining key
Pop-open shackle with retaining key (key needed for closing)
Variety of shackle clearances
Added Mul‑T‑Lock hasp
Added shackle protector

Materials
Shell: hardened steel
Core: black plated solid brass
Shackle: hardened boron alloy steel

Additional features
Protective shutter prevents dust contamination
Drainage holes prevent freezing

Finishes
Black electrophoretic; Chrome nickel bright

Cylinder mechanism
Mul-T-Lock's unique, high-precision pin tumbler system.
Pick and drill resistant for High Security needs.

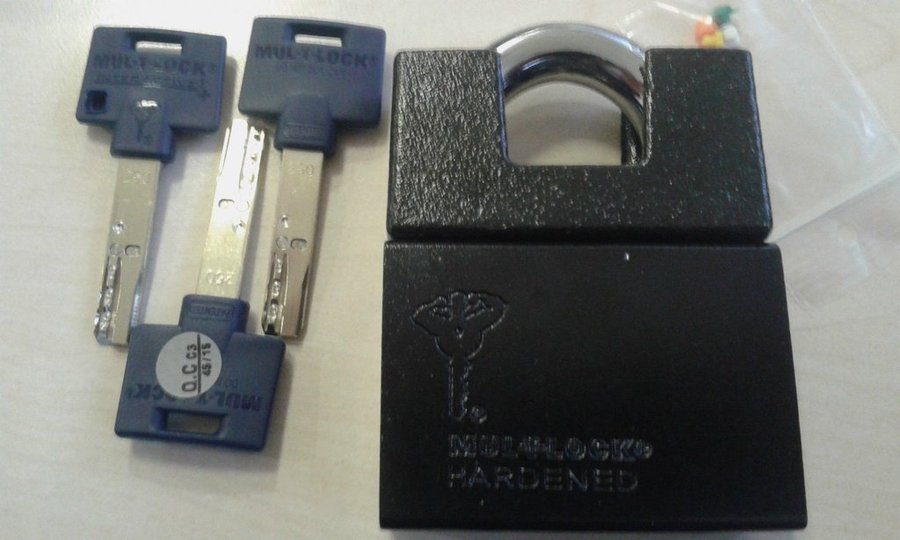

Keys
Reversible nickel silver key with plastic key head and colored insert.
Also available in all nickel silver.

Cylinder platforms
Classic; Interactive®+; MT5®
